• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78935

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-722T6 Ch= V-2401-2 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• The Westinghouse model H-722T6 is a 6 tube AM Clock radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(1) PM 4" speaker. Cabinet color is Cameo Beige/Mocha. Westinghouse model H-723T6 uses the same chassis and schematic, difference being cabinet color.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Literature/Schematics (1)

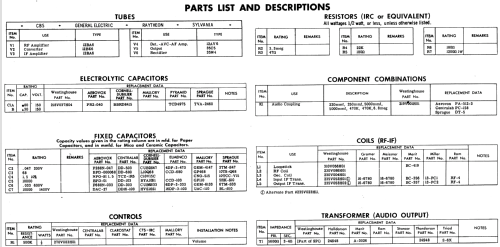

• Photofact Folder, Howard W. SAMS (Set 502 folder 18 date 10-60)

• Literature/Schematics (2)
• - - Manufacturers Literature (Westinghouse Datasheet RM4522)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
