• Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 216317
    • alternative name: Westinghouse El. Int.

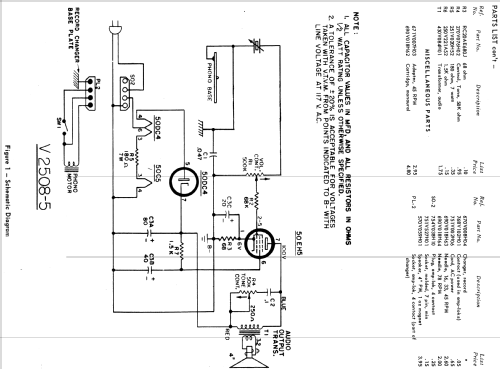

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-75AC1 Ch= V-2508-5 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse model H-75AC1 is an AC operated Mono 2 tube portable phono amplifier and 4 speed Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Charcoal Tweed. Uses Record Changer 671V008H04, with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-75AC2 uses the same chassis and schematic, the difference being cabinet color.
