H-75AC4 Ch= V-2508-5

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1962
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 216914
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • from Radiomuseum.org
  • Model: H-75AC4 Ch= V-2508-5 - Westinghouse El. & Mfg. Co. -
  • Notes

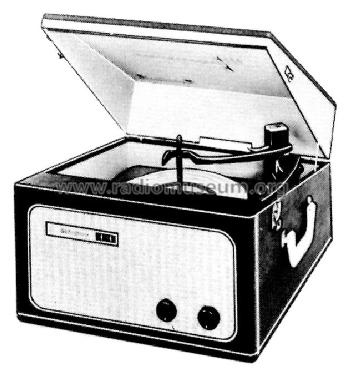

  • The Westinghouse model H-75AC4 is an AC operated Mono 2 tube portable phono amplifier and 4 speed Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Gray. Uses Record Changer 670V018H01, with speeds of 16, 33, 45 and 78 RPM. For service information and schematic, see Westinghouse model H-75AC1.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet PH6032)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
