• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1960–1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215736

• • alternative name: Westinghouse El. Int.

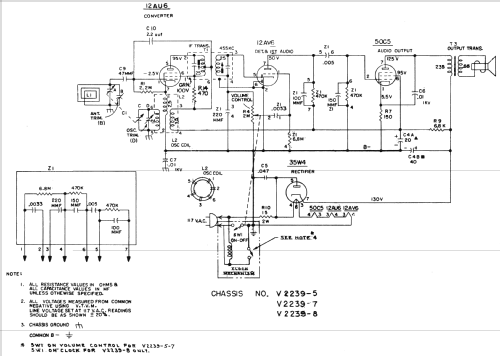

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-766L4 Ch= V-2239-8 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

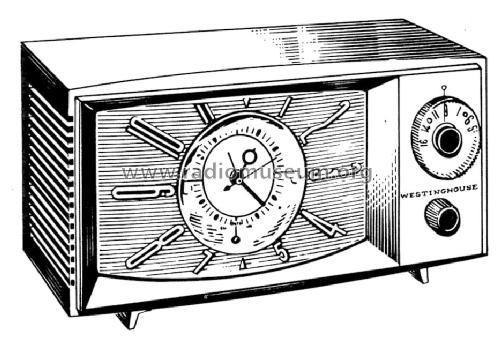

• The Westinghouse model H-766L4 is a 4 tube AM Clock radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(1) PM 4" speaker. Cabinet color is Cameo Beige.

• Literature/Schematics (1)
• - - Manufacturers Literature (Westinghouse Datasheet RA5009)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 301, folder 14)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.

• Other Models

• Here you find 3107 models, 1739 with images and 2626 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
