• Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 88976
    • alternative name: Westinghouse El. Int.

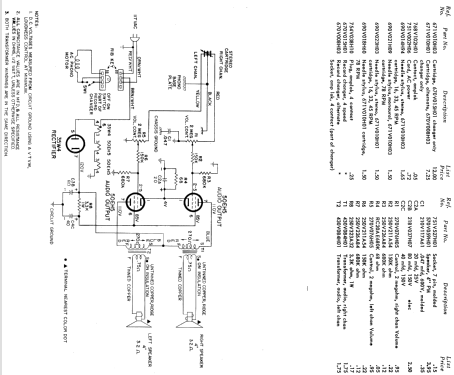

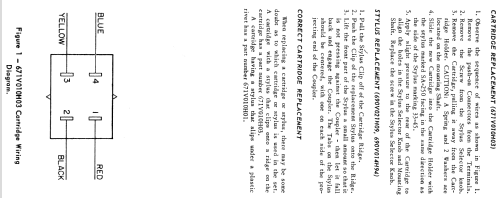

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-76ACS1 Ch= V-2508-11 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse Model H-76ACS1 is an AC Operated 3 Tube Stereo Amplifier with 4 Speed Automatic Record Changer. Has Qty(2) PM 4" speakers. Cabinet color is Gray/Pebble White. Uses Record Changer 670V015H01 or 670V008H03, with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-76ACS2 uses the same chassis and schematic, the difference being cabinet color.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (1)

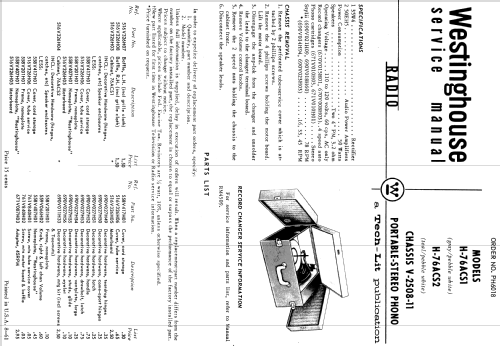

  • - - Manufacturers Literature (Westinghouse Datasheet PH6018)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
