H-78ACS2 Ch= V-2506-6

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 88806
    • alternative name: Westinghouse El. Int.

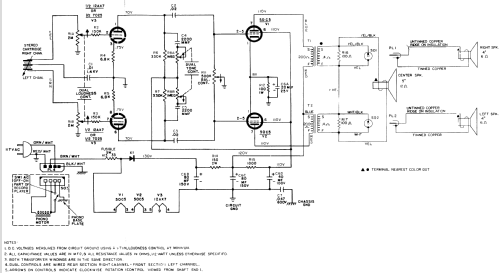

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-78ACS2 Ch= V-2506-6 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse model H-78ACS2 is an AC operated 3 tube portable stereo phono amplifier and 4 speed Record Changer. Has Qty(2) PM 4" speakers and Qty(1) PM 5" center speaker. Cabinet color is Charcoal Tweed. Has Selenium Rectifier. Uses Record Changer 670V008H05, with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-78ACS1 uses the same chassis and schematic, the difference being cabinet color.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet PH6020)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
