H-854K24A(V) Ch= V-2318-11

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1955 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
330487

- alternative name: Westinghouse El. Int.

Schematics

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662717) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662718) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662719) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

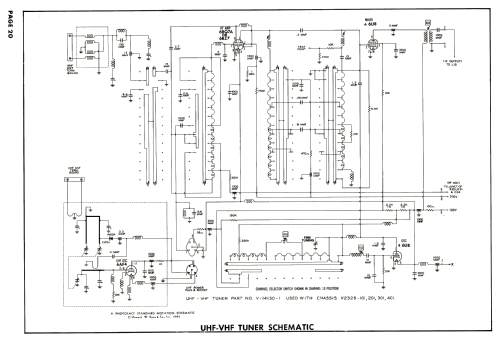

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662720) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662721) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662722) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

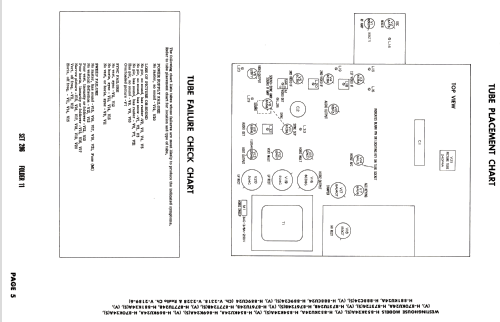

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662723) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

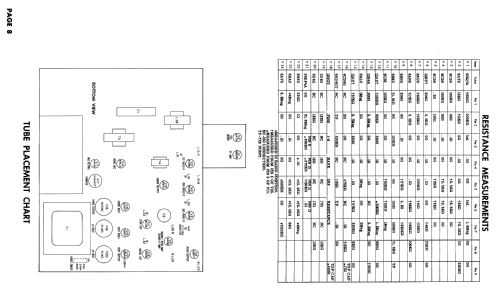

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662724) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662725) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

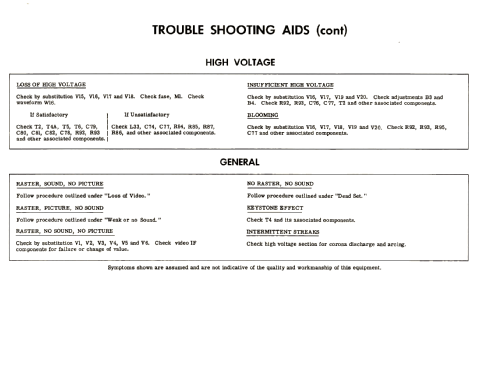

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662726) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

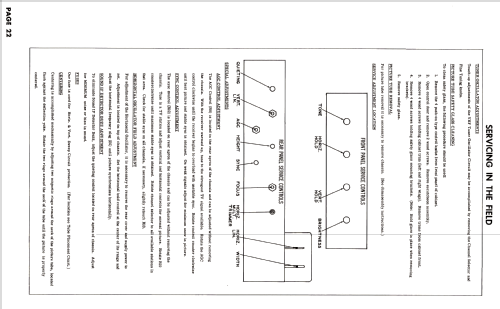

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662727) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662728) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662729) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

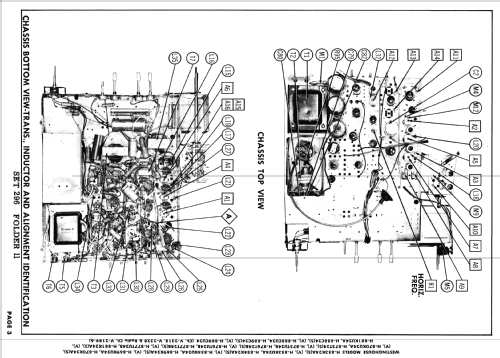

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662730) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

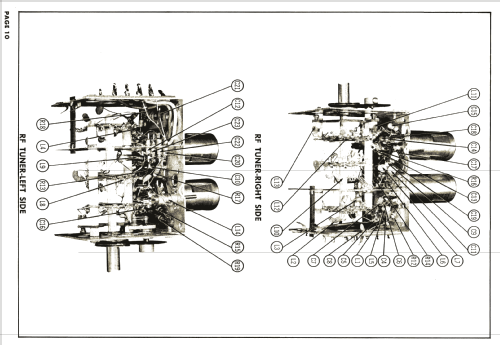

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662731) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662732) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662733) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662734) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662735) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662736) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662737) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

H-854K24ACh= V-2318-11; Westinghouse El. & (ID = 2662738) Television — Westinghouse El. & H-854K24ACh= V-2318-11 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
24

Valves / Tubes
6BQ7A 6AT8 6CB6 6CB6 6CB6 12BY7 6AU6 6AN8 6BN6 6BK5 6CS6 12AU7 12B4A 6AL5 12AU7 6CD6G 6AU4GT 1B3GT 5U4G 5U4G 24DP4A 6BE6 6BA6 6AV6

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: H-854K24ACh= V-2318-11 - Westinghouse El. & Mfg. Co. -

Shape
Tablemodel, with any shape - general.

Notes
Westinghouse model H-854K24A(V) is a 24” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2318-11, VHF tuner V-15460-1 and picture tube 24DP4A.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 296 Folder 11 dated 11-55)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
