• Year
  • 1962
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 138839
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-86ACS2 Ch= V-2527-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse Model H-86ACS2 is an AC Operated 3 Tube Stereo Amplifier with 4 Speed Automatic Record Changer. Has Qty(2) PM 4" speakers. Cabinet color is Metallic Brown. Uses Record Changer 670V021H01, with speeds of 16, 33, 45 and 78 RPM. Westinghouse models H-86ACS1 and H-86ACS3 use the same chassis and schematic, the difference being cabinet color.
  • Literature/Schematics (2)

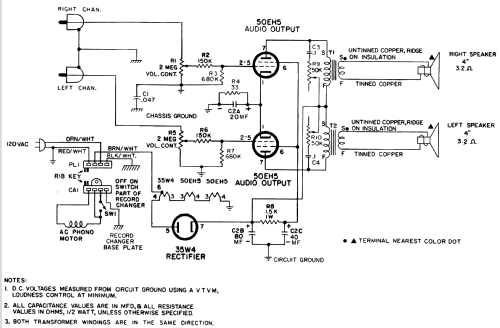

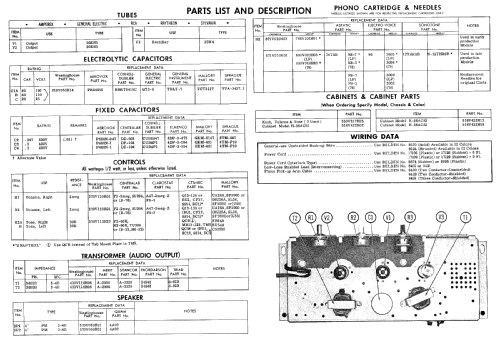

  • - - Manufacturers Literature (Westinghouse Datasheet PH6030)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
