H-873TU21A Ch= V-2273-324

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1954
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 221306
    • alternative name: Westinghouse El. Int.

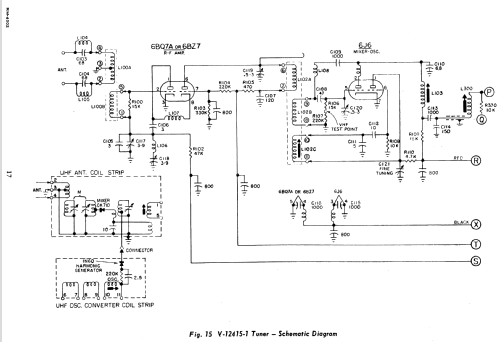

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 23
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: H-873TU21A Ch= V-2273-324 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • The Westinghouse H-873TU21A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis V-2273-324, VHF tuner V-12400-1, UHF tuner V-11972-1 (H-804) and picture tube 21YP4A. Cabinet is Blue. For service information, refer to Westinghouse model H-830K21 service notes and supplementary information.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheets RM4033 RM4002 RM4028 RM4062 RM3388 RM3378)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
