• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 267204
    • alternative name: Westinghouse El. Int.

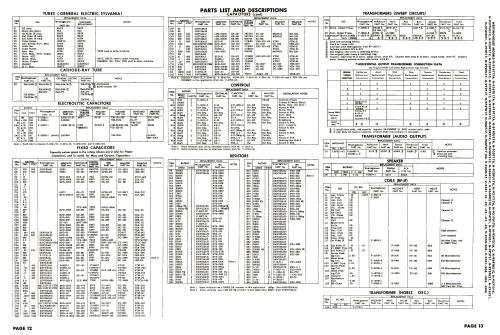

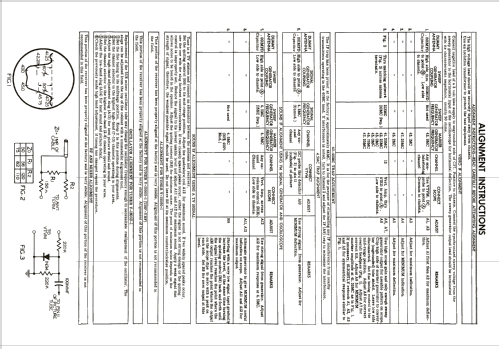

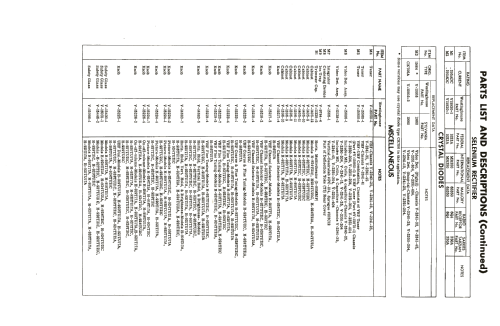

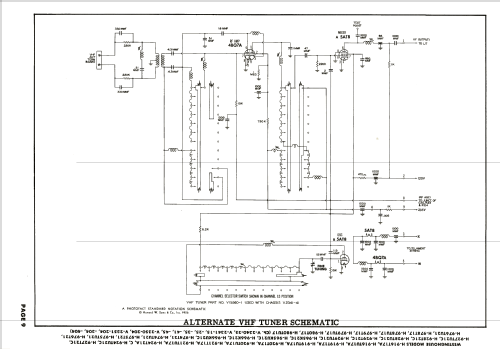

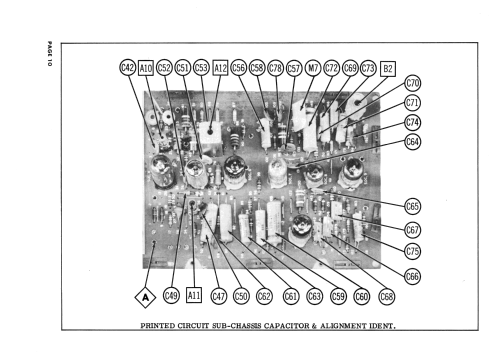

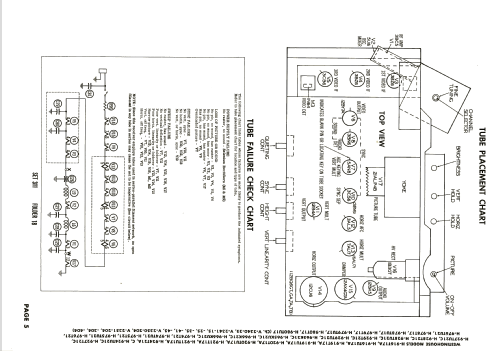

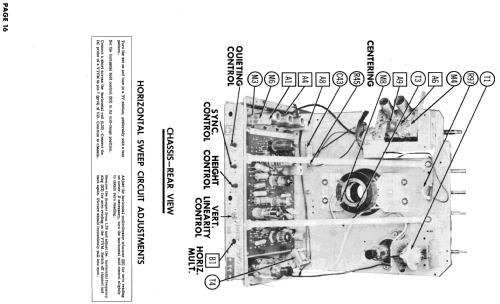

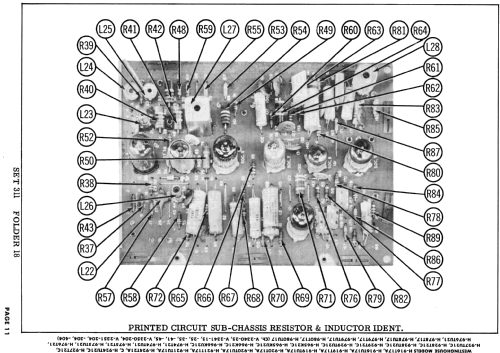

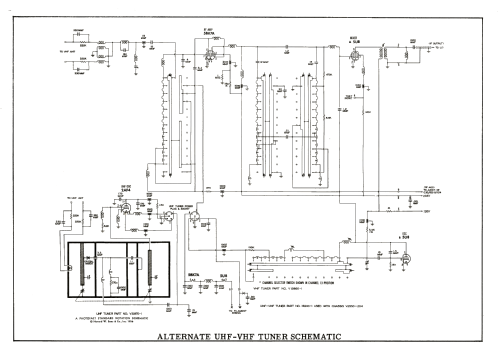

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V= 105 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-916TU17A Ch= V-2351-304 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The WESTINGHOUSE model H-916TU17A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-tuner V-15860, UHF-tuner V-15870, chassis V-2351-304 and picture tube 21ALP4A. 2X selenium rectifier.
    Changes made during late production can be found in " Production Changes Bulletin 178 "
    Set 345 Folder 1 date 1-57.

  • Literature/Schematics (1)

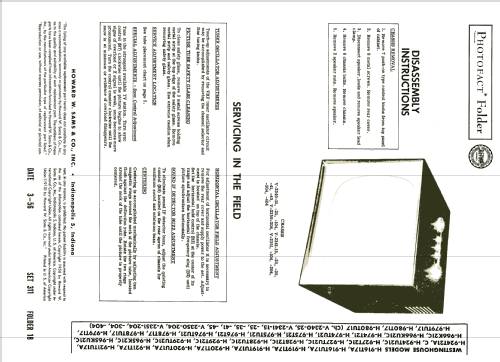

  • Set 311 Folder 18 dated 3-56
  • Literature/Schematics (2)
  • Set 345 Folder 1 dated 1-57
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
