HS-134 Ch= V-2503-4
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1959
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 126931
-
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HS-134 Ch= V-2503-4 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Westinghouse Model HS-134 is an AC Operated 4 Tube Audio Amplifier.
- Literature/Schematics (1)

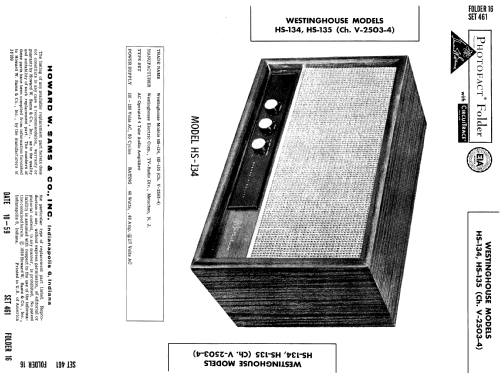

- Photofact Folder, Howard W. SAMS (Set 461 Folder 16 10-1959)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
