P.A. Chassis Ch= V-2512-3
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1960 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 86207
-
- alternative name: Westinghouse El. Int.

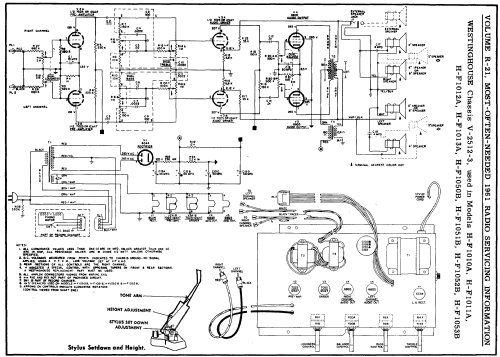

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: P.A. Chassis Ch= V-2512-3 - Westinghouse El. & Mfg. Co. -
- Shape
- Chassis only or for «building in»
- Notes
- Used in Models H-F1010A, H-F1011A, H-F1012A, H-F1013A, H-F1050B, H-F1052B and H-F1053b
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 21, 1961
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
