H-316C7 Ch= V-2136-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1950 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
66321

- alternative name: Westinghouse El. Int.

Schematics

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787292) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787293) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787294) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787295) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787296) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787297) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787298) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787299) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260075) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260076) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260077) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260078) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260079) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 3025875) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (3)

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 2787291) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (2)

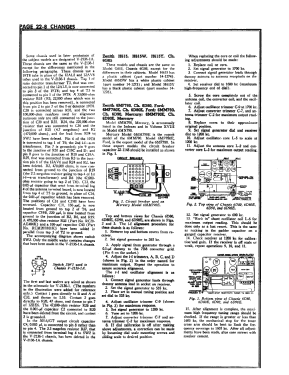

Picture from service manual.

H-316C7 Ch= V-2136-1; Westinghouse El. & (ID = 260074) Radio — Westinghouse El. & H-316C7 Ch= V-2136-1 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
12AT7 12BE6 12BA6 6BJ6 12AL5 12AV6 50L6GT

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Details
Record Player (perh.Changer)

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Power out
2.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: H-316C7 Ch= V-2136-1 - Westinghouse El. & Mfg. Co. -

Shape
Console, Lowboy (legs < 50 %).

Notes
Westinghouse model H-316C7 is an AC operated combination phono-radio AM-FM superheterodyne receiver. Diode Rectifier.

External source of data
Ernst Erb

Circuit diagram reference
Rider's Perpetual, Volume 21, Copyright 1950

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (set 112, Folder 13 dated 11-50)

Other Models
Here you find 3151 models, 1750 with images and 2667 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
