• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 66344
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117V AC/DC // 90 & 4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.23 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

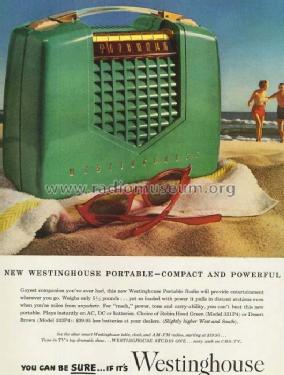

  • Model: H331P4 V-2164 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 225 x 205 x 110 mm / 8.9 x 8.1 x 4.3 inch
  • Notes

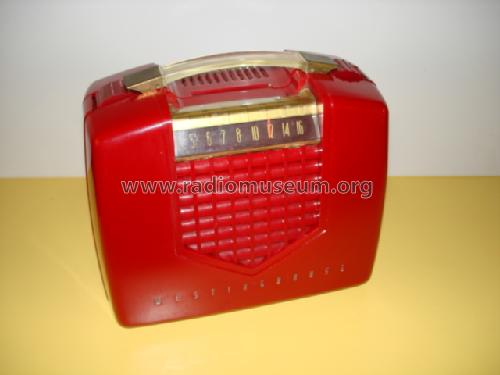

  • Colour: Robin Hood Green. Same Model in Desert Brown: H333P4. Same model in Maroon H400P4 Mentioned on paper label inside... Probable different number because it is a one coloured version...meaning that the knobs also are Maroon.
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Price in first year of sale
  • 40.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 23 (last), covering up to 1954

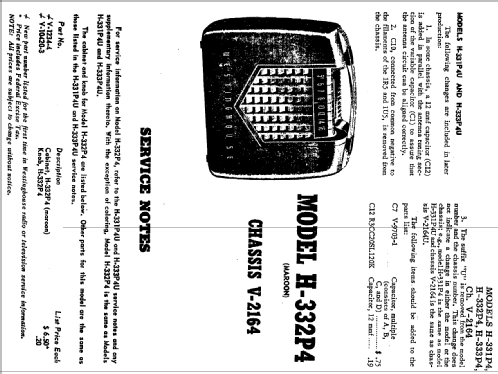

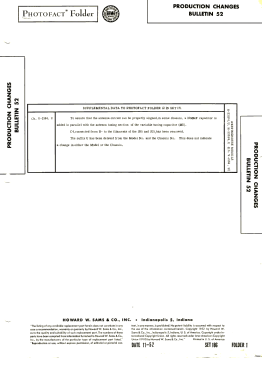

  • Literature/Schematics (1)
  • Riders 23-8, 9, 10, 11
