- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66400
-
- alternative name: Westinghouse El. Int.
Scanned from the Radio Retailing July 1941.

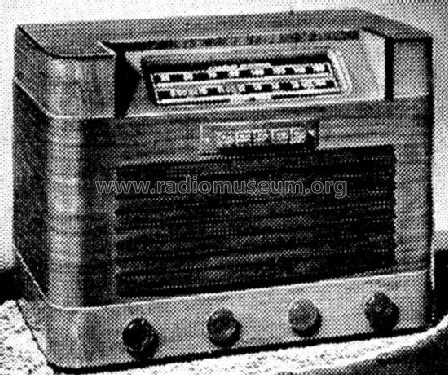

Scanned from the Radio Retailing July 1941.

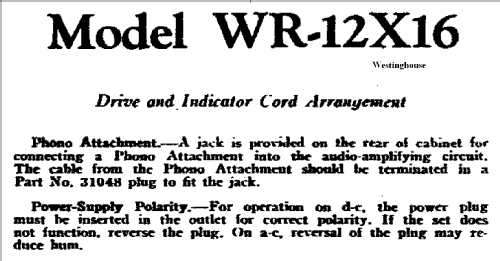

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)

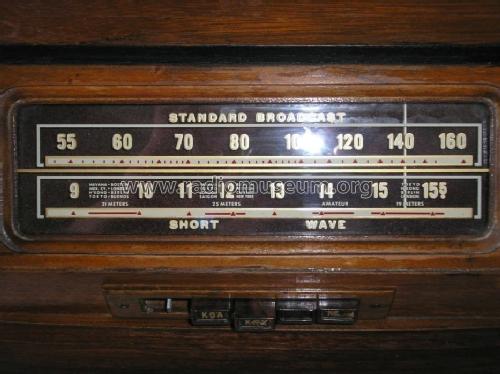

- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9.25 inch = 23.5 cm
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: WR-12X16 - Westinghouse El. & Mfg. Co. -

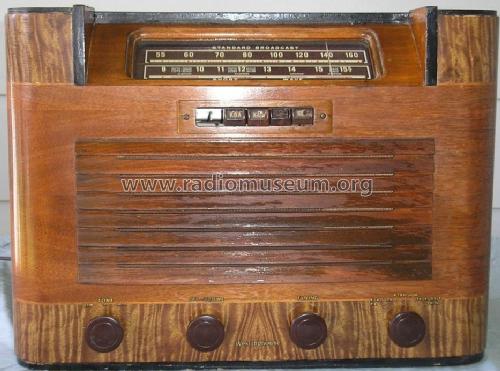

- Shape
- Tablemodel with Push Buttons.
- Notes
- Built in loop antenna. Push-button tuning.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Riders 13-8, 9, 10
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (July 1941.)
- Other Models
-
Here you find 3151 models, 1750 with images and 2667 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
