For model WR169, Westinghouse El. & Mfg. Co. - see also Canadian W.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner

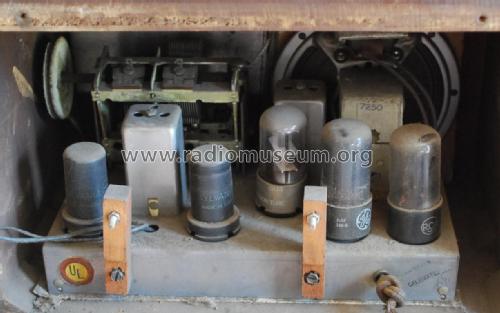

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 1.75 W (unknown quality)
from Radiomuseum.org Model: WR169 - Westinghouse El. & Mfg. Co. -
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Built in loop antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Rider's Perpetual, Volume 11 = ca. 1940 and before (11-14)
Literature/Schematics (2) Machine Age to Jet Age II (page 312.)
