For model 40, Westone Radio Corp., Los Angeles, CA:
I have owned this neat table model for over 20 years & did repair it when I purchased it. It still works well.

Country:  United States of America (USA)
Manufacturer / Brand:  Westone Radio Corp., Los Angeles, CA
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 40 - Westone Radio Corp., Los
Material Wooden case

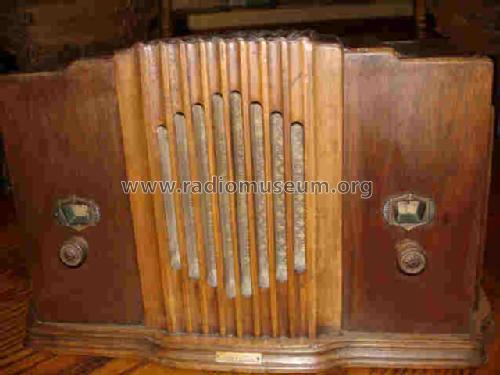

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.5 x 8.75 x 6.25 inch / 343 x 222 x 159 mm
Notes

The Rider's schematic fails to show the band switch and the phone jack.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
