- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66648
-
- alternative name: Wholesale Radio

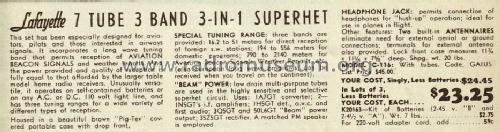

Katalog Lafayette No.82, Seite 9

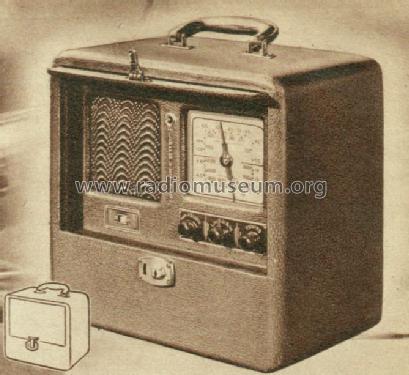

Katalog Lafayette No.82, Seite 9

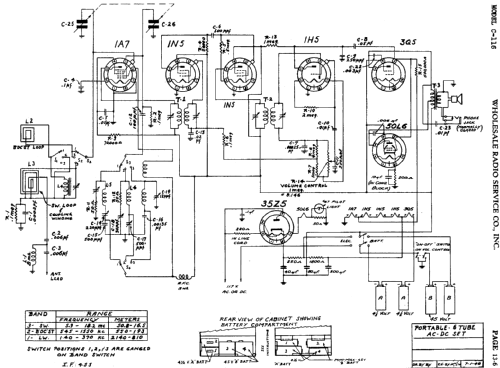

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / 117; 9 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: C-116 - Lafayette Radio & TV Corp; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.25 x 11.75 x 7.625 inch / 286 x 298 x 194 mm
- Notes
- Rider's Perpetual volume 13 shows this model under "Wholesale" instead of "Lafayette". The Lafayette model C-116 has a built-in loop antenna; output tube "3Q5" for battery supply - output tube "50L6" for mains supply. Cabinet is covered with brown "Pig-Tex". Front is lockable. A headphone jack is provided apart from the built-in speaker..
See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41.
- Price in first year of sale
- 15.00 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Lafayette Radio Catalog (catalog No.82, page 9)
