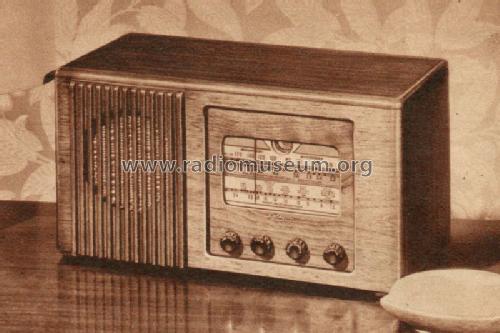

C-117 Series B
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66649
-
- alternative name: Wholesale Radio
Lafayette Katalog No.82, Seite 11
Lafayette Katalog No.82, Seite 11
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-117 Series B - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 17 x 9 x 8.875 inch / 432 x 229 x 225 mm
- Notes
- Rider's Perpetual volume 13 shows this model under "Wholesale" instead of "Lafayette". The Lafayette model C-117 Series B has a built-in loop antenna and a tuning eye 6U5. Cabinet has duo tone walnut finish.
See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41.
- Price in first year of sale
- 20.00 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Lafayette Radio Catalog (catalog No.82, page 11)
