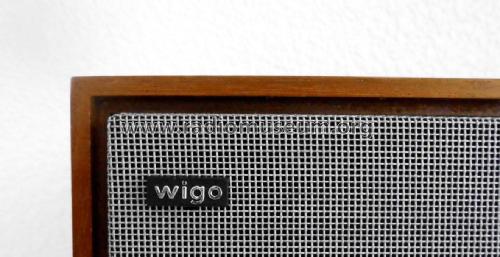

WB25; Wigo acustic, G. (ID = 2316494) Speaker-P WB25; Wigo acustic, G. (ID = 2316496) Speaker-P
WB25; Wigo acustic, G. (ID = 2316498) Speaker-P WB25; Wigo acustic, G. (ID = 2316499) Speaker-P
WB25; Wigo acustic, G. (ID = 2316500) Speaker-P WB25; Wigo acustic, G. (ID = 2084793) Speaker-P
WB25; Wigo acustic, G. (ID = 2084794) Speaker-P WB25; Wigo acustic, G. (ID = 2084795) Speaker-P
Use red slider bar for more.
WB25; Wigo acustic, G. (ID = 2316494) Speaker-P
Wigo acustic, G.: WB25 [Speaker-P] ID = 2316494 1381x1172
Select picture or schematic to display from thumbnails on the right and click for download.
For model WB25, Wigo acustic, G. Widmann (und Söhne); Schwenningen / Burlafingen

Country:  Germany
Manufacturer / Brand:  Wigo acustic, G. Widmann (und Söhne); Schwenningen / Burlafingen
Year: 1972–1974 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 25 W (35 W max.)
from Radiomuseum.org Model: WB25 - Wigo acustic, G. Widmann und S
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 270 x 505 x 205 mm / 10.6 x 19.9 x 8.1 inch
Notes

Wigo WB 25

2-Weg HiFi-Lautsprecherbox mit 2 Lautsprechern, Tieftöner ø 195 mm und Kalottenhochtöner ø 25 mm, Übertragungsbereich 35 - 25.000 Hz nach DIN 45500, Trennfrequenz der Weiche 2.000 Hz, Eigenresonanz ca 69 Hz,  25/35 W Nenn/Musikbelastbarkeit, Impedanz 5 Ω.

Gehäuseausführung: Nußbaumfurnier

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 264.00 DM
Mentioned in HiFi Jahrbuch 1972 und 1974

Model page created by Andreas Sommerer. See "Data change" for further contributors.
