- Country
- Germany
- Manufacturer / Brand
- Wigo acustic, G. Widmann (und Söhne); Schwenningen / Burlafingen
- Year
- 1964
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 323022
Wigo Prospekt 1964
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 40 cm = 15.7 inch
- Power out
- 40 W (max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: PM 400/62 - Wigo acustic, G. Widmann und S
- Shape
- Chassis only or for «building in»
- Notes
-

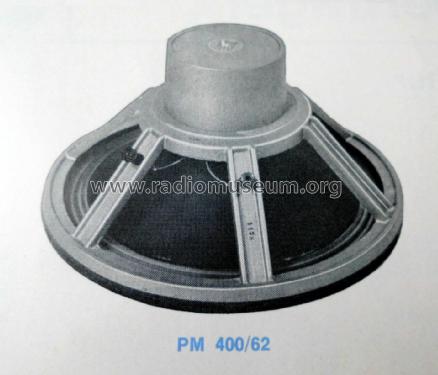

Wigo Lautsprecher PM 400/62
Aluminium-Druckguss-Lautsprecherchassis, Übertragungsbereich 30 bis 8.000 Hz, Impedanz 15 Ω, Schwingspulen Ø 62 mm, Magnet Induktion 10.000 Gauss
Die Belastbarkeit beträgt 40 Watt
- Price in first year of sale
- 395.00 DM
- Mentioned in
- -- Original prospect or advert (Wigo Katalog 1964)
- Author
- Model page created by Michael Lienhop. See "Data change" for further contributors.
