For model 1C-10 Recordio, Wilcox-Gay Corp.; Charlotte (MI):
Gerät steht im Deutschen Phono Museum in St. Georgen.

Country:  United States of America (USA)
Manufacturer / Brand:  Wilcox-Gay Corp.; Charlotte (MI)
Brand

Recordio
Year: 1951 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 6SJ7 12AX7 6AQ5 6X4
Main principle Audio-Amplification
Wave bands - without
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1C-10 Recordio - Wilcox-Gay Corp.; Charlotte MI
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes 5" x 7" PM elliptical speaker.
The Wilcox Recordio Model 1C-10 is an AC Operated Disc and Tape Recorder with 4 Tube Audio Amplifier.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951

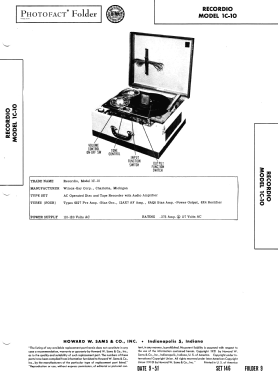

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-51, Set 146, Folder 9)
