• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilcox-Gay Corp.; Charlotte (MI)

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66798

• • Brand: Recordio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 6X4 NE-2 NE-2

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 115 = 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

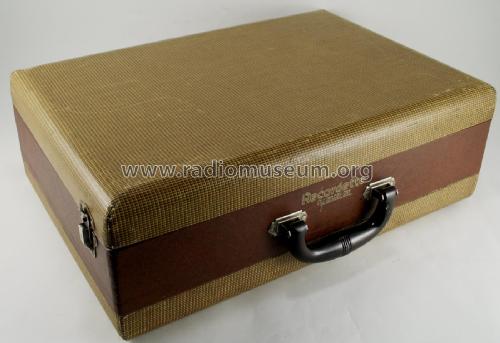

• Model: Recordio 8J10 - Wilcox-Gay Corp.; Charlotte MI

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• Combination Phono-Recorder-Receiver as is Recordette 8J10U.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 62, Folder 17)

• Other Models

• Here you find 236 models, 117 with images and 188 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wilcox-Gay Corp.; Charlotte (MI)
