• Country
• Great Britain (UK)

• Manufacturer / Brand
• Wirek (Electronics), Ltd.; Stanmore, London

• Year
• 1950 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 344450

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SL7 6SL7 6V6 6V6 6SQ7 6SL7 6SN7 6V6 6J6 5Z4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Wire Recorder - Wirek Electronics, Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Wire Recorder

  Microphone and phono/tuner inputs. The two inputs are connected in parallel, without switching, so they can be mixed.

  A switch allows sending the input signal directly to the output amplifier so we can use the device as an amplifier.

  See also Wirek Wire Recorder - Phonograph.

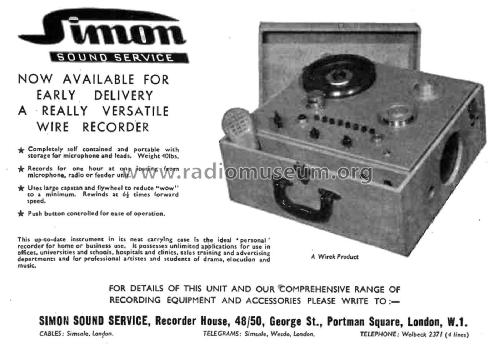

  Also sold by Simon Sound Services Ltd.

• Mentioned in

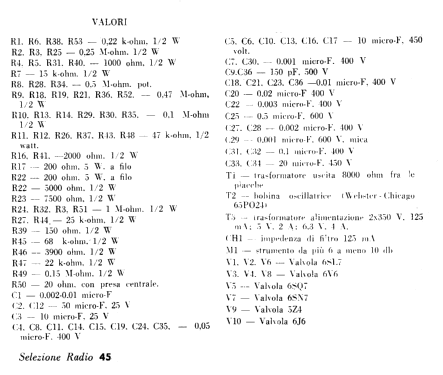

• -- Original-techn. papers. (“Selezione Radio” Italy, February 1952.)

• Literature/Schematics (1)
• Wireless World (The), London (WW, 79) (Mar 1950 Page 43.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
