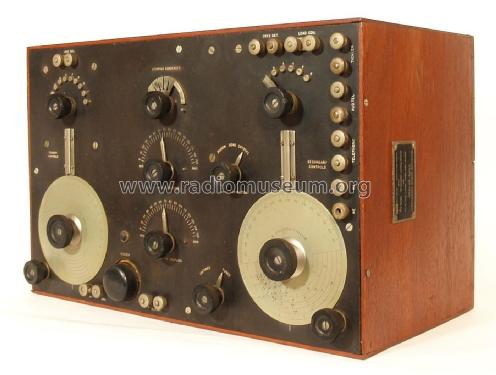

Medium Wave Receiver SE-1220

• Country
• United States of America (USA)

• Manufacturer / Brand
• Wireless Specialty Apparatus Co.; Boston (MA)

• Year
• 1918

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 293030

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Tuner pre 1926 (not a wave trap)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 1.5V Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Medium Wave Receiver SE-1220 - Wireless Specialty Apparatus

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 23 x 14 x 12 inch / 584 x 356 x 305 mm

• Notes

• SE-1220 Medium Wave radio receiver

  The SE-1220 was the military version of WSA's IP-500.

  Wabe length range; 150-6800 meters.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
