Last-Spannungsprüfer (zweipolig)
WOBLA, Elektro-Blauert, Halle /Saale (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- WOBLA, Elektro-Blauert, Halle /Saale (Ostd.)
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 248037
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Last-Spannungsprüfer - WOBLA, Elektro-Blauert, Halle
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 80 x 250 x 40 mm / 3.1 x 9.8 x 1.6 inch
- Notes
-

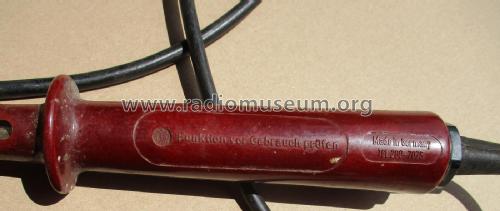

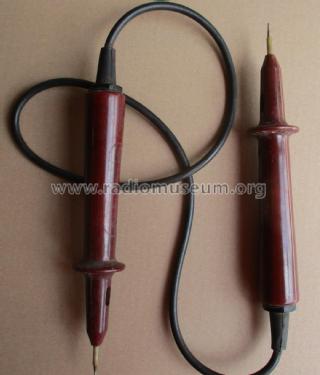

Zweipoliger Spannungsprüfer für Gleich- und Wechselspannungen von 110 bis 750 V; Glimmprüfung mit 0,2 bis 1,5 mA; Lastprüfung (Knopf gedrückt) mittels Soffitten-Glühlampe.
- Net weight (2.2 lb = 1 kg)
- 0.314 kg / 0 lb 11.1 oz (0.692 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
