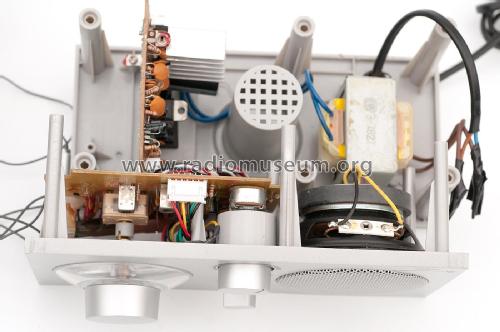

Soundmaster TR-17; Wörlein GmbH; (ID = 2298914) Radio Soundmaster TR-17; Wörlein GmbH; (ID = 1642670) Radio
Soundmaster TR-17; Wörlein GmbH; (ID = 1642671) Radio Soundmaster TR-17; Wörlein GmbH; (ID = 1642672) Radio
Soundmaster TR-17; Wörlein GmbH; (ID = 1642673) Radio
Use red slider bar for more.
Soundmaster TR-17; Wörlein GmbH; (ID = 2298912) Radio
Wörlein GmbH;: Soundmaster TR-17 [Radio] ID = 2298912 1400x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model Soundmaster TR-17, Wörlein GmbH; Cadolzburg

Country:  Germany
Manufacturer / Brand:  Wörlein GmbH; Cadolzburg
alternative name

Vörlein
Brand
Soundmaster
Year: 2009 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: 2SC9013 KTC8550 2SA1300 CD2003GP NE5532 TL072 TL084 µA78xx YD1519
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Retro-look - not smaller orig.
Power type and voltage Line plus power jack, mostly with battery or storage battery / 230 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Soundmaster TR-17 - Wörlein GmbH; Cadolzburg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 212 x 119 x 150 mm / 8.3 x 4.7 x 5.9 inch
Notes

Soundmaster TR-17.
AM/FM-Retroradio; MW-Empfang über eingebaute Ferritantenne, UKW-Empfang über Wurfantenne; 3,5 mm Klinkenanschlüsse für Kopfhörer und AUX; 12V/800mA DC-Anschluss für Hohlstecker.

Net weight (2.2 lb = 1 kg) 1.719 kg / 3 lb 12.6 oz (3.786 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
