Q-Multiplier SS3

Q-Multiplier SS3; World Radio (ID = 2057002) Amateur-D Q-Multiplier SS3; World Radio (ID = 2057003) Amateur-D
Use red slider bar for more.

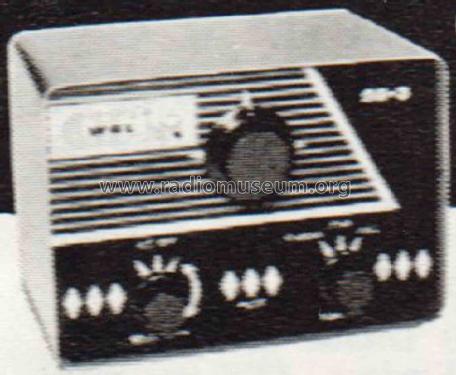

Q-Multiplier SS3; World Radio (ID = 2057002) Amateur-D
World Radio: Q-Multiplier SS3 [Amateur-D] ID = 2057002 1400x1151
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q-Multiplier SS3, World Radio Laboratories (WRL), (Globe Electronics); Council Bluffs, IA:
QST July 1961 page 129

Country:  United States of America (USA)
Manufacturer / Brand:  World Radio Laboratories (WRL), (Globe Electronics); Council Bluffs, IA
Year: 1961 Category: Amateur Equipment (Other, but not Key)
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Q-Multiplier SS3 - World Radio Laboratories WRL,
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

The WRL SS3 Q-Multiplier boosts signals on any receiver with an IF of 455 KHz. It was available as a kit.

Net weight (2.2 lb = 1 kg) 4 lb (4 lb 0 oz) / 1.816 kg
Price in first year of sale 14.95 USD
Mentioned in QST (July 1961 page 129)

Model page created by Wayne Childress. See "Data change" for further contributors.
