• Country
• People's Republic of China

• Manufacturer / Brand
• Wouxun Electronis Co; Fujian

• Year
• 2000 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 194881

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 7,4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

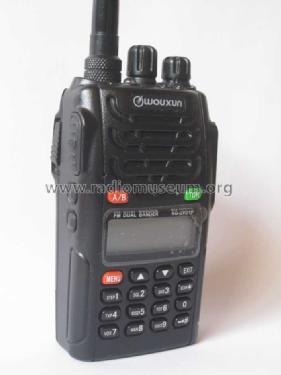

• Model: KG-UVD1P - Wouxun Electronis Co; Fujian

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 58 x 105 x 39 mm / 2.3 x 4.1 x 1.5 inch

• Notes
• Dualband Sende-/Empfänger, Frequenzbereiche ( länderspezifisch):
  136-174&350-470 MHz (RX/TX), 136-174&400-480 MHz (RX/TX), 136-174&420-520 MHz (RX/TX),
  136-174&400-470 MHz (RX/TX), 136-174&245-250 MHz (RX/TX), 136-174&216-280 MHz (RX/TX),
  136-174&225-226 MHz (RX/TX), 144-146&430-440 MHz (RX/TX, FM: 76-108 MHz/nur Empfang,
  Ausgangsleistung: VHF: 5W / UHF: 4W, Taschenlampenfunktion, 128 Speicher-Kanäle.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Price in first year of sale
• 100.00 EUR

• Source of data
• - - Data from my own collection

• Author
• Model page created by Guenter Pelan. See "Data change" for further contributors.
