Jukebox 1250 "Twelve Fifty" Ch= 510

Jukebox 1250 'Twelve Fifty' Ch= 510; Wurlitzer Co., The (ID = 1688860) R-Player Jukebox 1250 'Twelve Fifty' Ch= 510; Wurlitzer Co., The (ID = 1698243) R-Player
Jukebox 1250 'Twelve Fifty' Ch= 510; Wurlitzer Co., The (ID = 1963250) R-Player Jukebox 1250 'Twelve Fifty' Ch= 510; Wurlitzer Co., The (ID = 1963256) R-Player
Use red slider bar for more.
Jukebox 1250 'Twelve Fifty' Ch= 510; Wurlitzer Co., The (ID = 1688860) R-Player
Wurlitzer Co., The: Jukebox 1250 "Twelve Fifty" Ch= 510 [R-Player] ID = 1688860 549x784
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jukebox 1250 "Twelve Fifty" Ch= 510, Wurlitzer Co., The Rudolph:

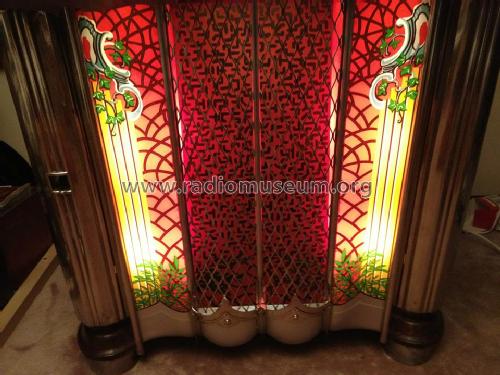

The jukebox in its original condition, the day I bought it.

Country:  United States of America (USA)
Manufacturer / Brand:  Wurlitzer Co., The Rudolph
Year: 1950–1952 Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: 5U4G 6L6G 6L6G 6SN7GT 6J5 6SJ7 6SJ7
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Jukebox-Coin operated Phonograph
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Jukebox 1250 "Twelve Fifty" Ch= 510 - Wurlitzer Co., The Rudolph
Material Various materials
Shape Console with any shape - in general
Dimensions (WHD) 36.5 x 59.38 x 27.88 inch / 927 x 1508 x 708 mm
Notes

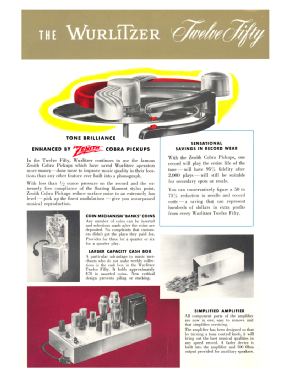

Illuminated 48 selection program holder. Adapta-Speed record changer with two tone arms with Zenith Cobra Tone pickups. New Dynatone Sound System with amplifier Model 510.

A kit for playing 45 and 33 rpm records was available for less than $10.

Net weight (2.2 lb = 1 kg) 380 lb (380 lb 0 oz) / 172.520 kg
Price in first year of sale 795.50 $
Mentioned in - - Manufacturers Literature

Model page created by Bob Isaac. See "Data change" for further contributors.



All listed radios etc. from Wurlitzer Co., The Rudolph
Here you find 218 models, 128 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
