Lyric S-65

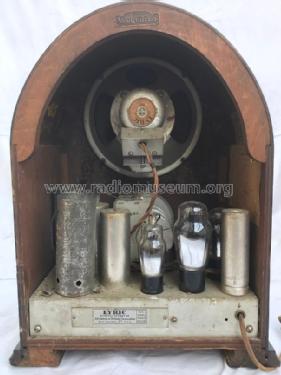

Lyric S-65 ; Wurlitzer Co., The (ID = 2358623) Radio Lyric S-65 ; Wurlitzer Co., The (ID = 2358624) Radio
Use red slider bar for more.
Lyric S-65 ; Wurlitzer Co., The (ID = 2358623) Radio
Wurlitzer Co., The: Lyric S-65 [Radio] ID = 2358623 605x807
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lyric S-65, Wurlitzer Co., The Rudolph

Country:  United States of America (USA)
Manufacturer / Brand:  Wurlitzer Co., The Rudolph
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 57 58 55 47 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Lyric S-65 - Wurlitzer Co., The Rudolph
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

Model page created by Luca Posca. See "Data change" for further contributors.



All listed radios etc. from Wurlitzer Co., The Rudolph
Here you find 220 models, 130 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
