• Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175883

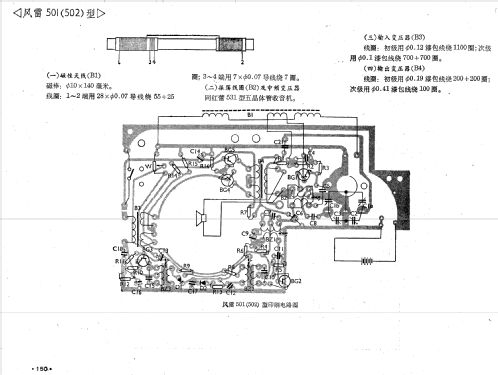

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Fenglei 风雷 501 - Xinanjiang 新安江无线电厂
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 152 x 90 x 40 mm / 6 x 3.5 x 1.6 inch
  • Notes
  • The models Fenglei 风雷 501 and 502 share the same schematic and the same case.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
