• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1988 ?

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 186143

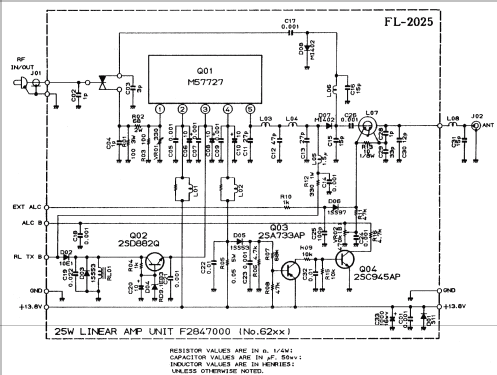

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 12-15.8 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: 25W Linear Amplifier for 2m FL-2025 - Yaesu-Musen Co. Ltd.; Tokyo

• Dimensions (WHD)
• 148 x 57 x 65 mm / 5.8 x 2.2 x 2.6 inch

• Notes
• 25W Endstufe für das 2m-Band. Das Modul wird am FT-290R/II angeflanscht statt des Batteriekastens

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Franz Harder. See "Data change" for further contributors.
