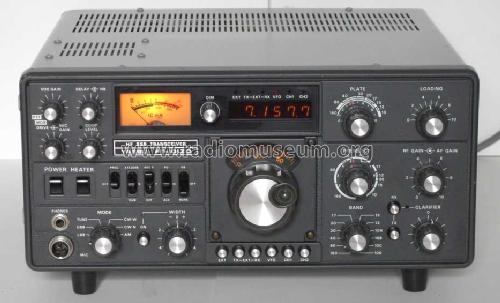

Amateur-Transceiver FT-101ZD Mk II

Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 2244557) Amat TRX Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 2244558) Amat TRX
Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 2244556) Amat TRX Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 2244559) Amat TRX
Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755943) Amat TRX Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755947) Amat TRX
Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755944) Amat TRX Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755949) Amat TRX
Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755950) Amat TRX Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 755951) Amat TRX
Use red slider bar for more.
Amateur-Transceiver FT-101ZD Mk II; Yaesu-Musen Co. Ltd. (ID = 2244557) Amat TRX
Yaesu-Musen Co. Ltd.: Amateur-Transceiver FT-101ZD Mk II [Amat TRX] ID = 2244557 1126x919
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amateur-Transceiver FT-101ZD Mk II, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1980 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Valves / Tubes 3: 12BY7A 6146B 6146B
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 8987,5 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-234 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Amateur-Transceiver FT-101ZD Mk II - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 345 x 157 x 326 mm / 13.6 x 6.2 x 12.8 inch
Notes Amateur-Bänder 160m 80m 40m 30m 20m 17m 15m 12m 10m.
Betriebsarten: SSB, CW und AM.
Sendereingangsleisung: 180 Watt bei SSB und CW, 50 Watt bei AM.
DC-Converter optional.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Source of data - - Manufacturers Literature
