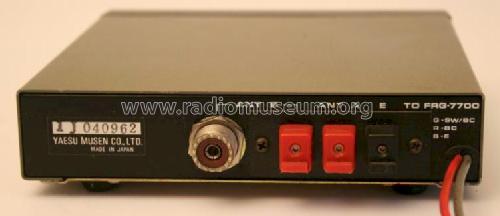

Antennen-Anpassgerät FRT-7700

Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 109360) Amateur-D
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 107231) Amateur-D Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 107232) Amateur-D
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 137187) Amateur-D Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 137186) Amateur-D
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 137189) Amateur-D Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 388147) Amateur-D
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 905739) Amateur-D Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 1242334) Amateur-D
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 1242336) Amateur-D Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 1472680) Amateur-D
Use red slider bar for more.
Antennen-Anpassgerät FRT-7700; Yaesu-Musen Co. Ltd. (ID = 107231) Amateur-D
Yaesu-Musen Co. Ltd.: Antennen-Anpassgerät FRT-7700 [Amateur-D] ID = 107231 552x235
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antennen-Anpassgerät FRT-7700, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1981 ? Category: Amateur Equipment (Other, but not Key)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Antennen-Anpassgerät FRT-7700 - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 165 x 35 x 170 mm / 6.5 x 1.4 x 6.7 inch
Notes Yaesu Antennen-Anpassgerät FRT-7700 für Empfangsantennen im Bereich von 150 kHz bis 30 MHz.

The FRT-7700 is an ultra-compact passive antenna tuner for the FRG-7700 receiver. Designed for operation from 150 kHz to 30 MHz, the FRT-7700 will provide the proper impedance for the receiver, to reject unwanted signals. A built-in attenuator, 60 dB maximum, prevents intermodulation and cross-modulation from occurring when strong signals are being carried to receiver. Also, a two-section lowpass filter aids in the rejection of interference from strong signals above 2 MHz, when are listening to bands in the 150 kHz to 500 kHz range.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 138.00 DM
Collectors' prices
Mentioned in RICOFUNK-Katalog 1983

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
