FL-2100B

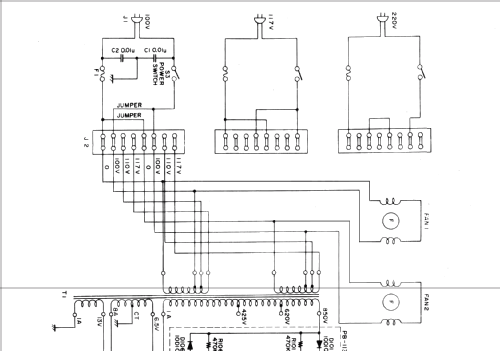

FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495101) Amateur-T

FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495102) Amateur-T

FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495103) Amateur-T

FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495104) Amateur-T

FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495105) Amateur-T
FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495098) Amateur-T FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495099) Amateur-T
FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495100) Amateur-T FL-2100B; Yaesu-Musen Co. Ltd. (ID = 905265) Amateur-T
FL-2100B; Yaesu-Musen Co. Ltd. (ID = 1892826) Amateur-T
Use red slider bar for more.
FL-2100B; Yaesu-Musen Co. Ltd. (ID = 495098) Amateur-T
Yaesu-Musen Co. Ltd.: FL-2100B [Amateur-T] ID = 495098 933x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model FL-2100B, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1980 ?? Category: Amateur Transmitter (only)
Valves / Tubes 2: 572B 572B
Main principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 117; 200; 220; 234 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FL-2100B - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 150 x 390 mm / 13.4 x 5.9 x 15.4 inch
Notes Linear-Endstufe für die Amateurbänder 10, 15, 20, 40 und 80m.
Ausgangsleistung 600 bis 700W.
Das FL-2100B ist der Vorläufer vom FL-2100Z.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)

Model page created by Dieter Barkawitz. See "Data change" for further contributors.
