FT-1000MP

FT-1000MP; Yaesu-Musen Co. Ltd. (ID = 70775) Amat TRX FT-1000MP; Yaesu-Musen Co. Ltd. (ID = 84671) Amat TRX
FT-1000MP; Yaesu-Musen Co. Ltd. (ID = 84672) Amat TRX
Use red slider bar for more.
FT-1000MP; Yaesu-Musen Co. Ltd. (ID = 70775) Amat TRX

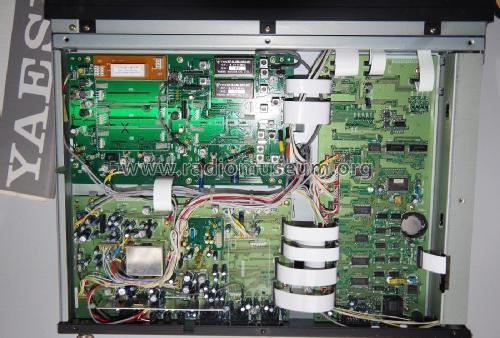

Yaesu-Musen Co. Ltd.: FT-1000MP [Amat TRX] ID = 70775 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model FT-1000MP, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1996 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 13.8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: FT-1000MP - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 135 x 347 mm / 16.1 x 5.3 x 13.7 inch
Notes Yaesu HF-Transceiver FT-1000MP.
Frequenzbereich: TX 160-10 m inkl. WARC, RX 0,1-30 MHz; Betriebsarten: AM, FM, SSB, CW, RTTY; DSP-Prozessor für Empfang und Sprachaufbereitung; 3 Antennen-Eingänge; eingebauter Automatik-Antennentuner; mehrere Filter getrennt für 2. und 3. ZF schaltbar; Pout: 100 W (AM 25 W).
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 5,800.00 DM
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
