FT-202M

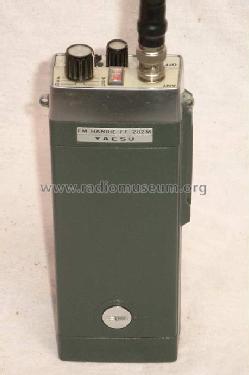

FT-202M; Yaesu-Musen Co. Ltd. (ID = 154345) Commercial TRX FT-202M; Yaesu-Musen Co. Ltd. (ID = 154346) Commercial TRX
FT-202M; Yaesu-Musen Co. Ltd. (ID = 154347) Commercial TRX FT-202M; Yaesu-Musen Co. Ltd. (ID = 154348) Commercial TRX
FT-202M; Yaesu-Musen Co. Ltd. (ID = 154349) Commercial TRX FT-202M; Yaesu-Musen Co. Ltd. (ID = 154350) Commercial TRX
Use red slider bar for more.
FT-202M; Yaesu-Musen Co. Ltd. (ID = 154345) Commercial TRX
Yaesu-Musen Co. Ltd.: FT-202M [Commercial TRX] ID = 154345 450x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model FT-202M, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1977 ?? Category: Commercial Transmitter & Receiver (TRX not Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 7 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: FT-202M - Yaesu-Musen Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 69 x 171 x 49 mm / 2.7 x 6.7 x 1.9 inch
Notes Yaesu Handheld-VHF-FM-Transceiver FT-202M.
Six xtal channels in the range 146-160 MHz.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
