FT-209R

FT-209R; Yaesu-Musen Co. Ltd. (ID = 595348) Amat TRX
Use red slider bar for more.
FT-209R; Yaesu-Musen Co. Ltd. (ID = 595348) Amat TRX
Yaesu-Musen Co. Ltd.: FT-209R [Amat TRX] ID = 595348 273x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FT-209R, Yaesu-Musen Co. Ltd.; Tokyo:
RICOFUNK-Katalog 1984/85

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1985 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 10700/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 10,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: FT-209R - Yaesu-Musen Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 168 x 34 mm / 2.6 x 6.6 x 1.3 inch

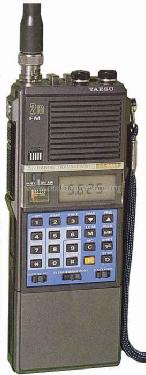

Notes Yaesu Handheld-VHF-FM-Transceiver FT-209R.
Frequency range: 144-146 MHz (FT-209R/US: 144-148 MHz) in 12.5-kHz-steps (/US in 5-kHz-steps); 10 memories; digital readout; external power supply possible; Pout: 2.7 W/0,5 W.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Mentioned in RICOFUNK-Katalog 1984/85
Literature/Schematics (1) Beam Amateurfunk-Geräteführer '90

Model page created by Iven Müller. See "Data change" for further contributors.
