FT-209RH

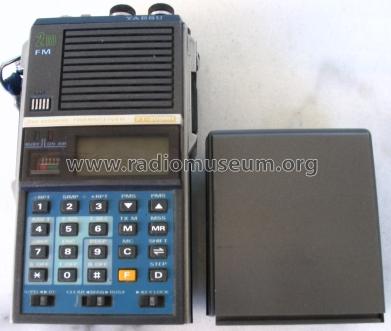

FT-209RH; Yaesu-Musen Co. Ltd. (ID = 259064) Amat TRX FT-209RH; Yaesu-Musen Co. Ltd. (ID = 259065) Amat TRX
Use red slider bar for more.
FT-209RH; Yaesu-Musen Co. Ltd. (ID = 259064) Amat TRX
Yaesu-Musen Co. Ltd.: FT-209RH [Amat TRX] ID = 259064 293x369
Select picture or schematic to display from thumbnails on the right and click for download.
For model FT-209RH, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1984 ? Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 10,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FT-209RH - Yaesu-Musen Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 168 x 34 mm / 2.6 x 6.6 x 1.3 inch
Notes Yaesu Handheld-VHF-FM-Transceiver FT-209RH.
Frequency range: 144-146 MHz in 12.5-kHz-steps; 10 memories; digital readout; external power supply possible; Pout: 3.7 W/0,5 W.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Mentioned in RICOFUNK-Katalog 1984/85

Model page created by Iven Müller. See "Data change" for further contributors.
