• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1987

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 75461

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 16900/455 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage and/or dry batteries / 6-15 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

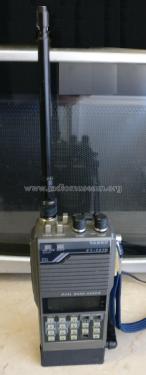

• Model: FT-727R - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 71 x 200 x 38 mm / 2.8 x 7.9 x 1.5 inch

• Notes
• Yaesu Handheld-VHF-/UHF-FM-Transceiver FT-727R.
  Frequency range: 144-146 / 430-440 MHz (Europe and Asia), 144-148 / 430-450 MHz (USA); P_out: 5 W max.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Mentioned in
• Beam Amateurfunk-Geräteführer '90

• Literature/Schematics (1)
• Funkschau (1/1987, S. 90 - 92 / Erfahrungsbericht)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
