FT-747GX

FT-747GX; Yaesu-Musen Co. Ltd. (ID = 1416053) Amat TRX FT-747GX; Yaesu-Musen Co. Ltd. (ID = 468946) Amat TRX
FT-747GX; Yaesu-Musen Co. Ltd. (ID = 1416012) Amat TRX
Use red slider bar for more.
FT-747GX; Yaesu-Musen Co. Ltd. (ID = 1416053) Amat TRX
Yaesu-Musen Co. Ltd.: FT-747GX [Amat TRX] ID = 1416053 933x389

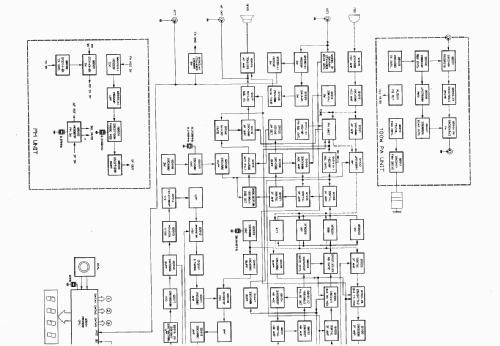

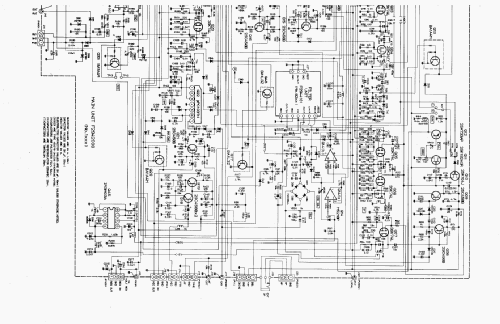

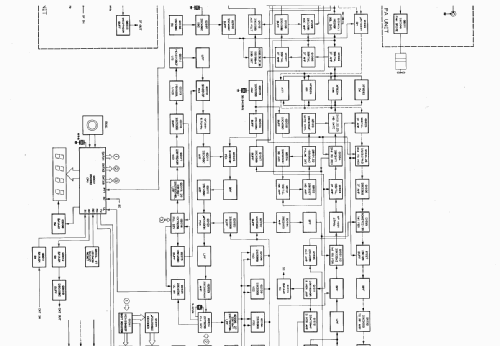

Select picture or schematic to display from thumbnails on the right and click for download.
For model FT-747GX, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1988 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13.8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FT-747GX - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 238 x 93 x 238 inch / 6045 x 2362 x 6045 mm
Notes Yaesu KW-Transceiver FT-747GX.
Frequenzbereich: RX 0,1-30 MHz, TX 160-10 m AFu-Bänder; Betriebsarten: SSB (LSB und USB ohne Frequenzversatz beim Umschalten), CW, AM, FM (optional); 20 Speicher, Pout: 100 W (25 W in AM).
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 1,638.00 DM
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in RICOFUNK-Katalog 1988

Model page created by Iven Müller. See "Data change" for further contributors.
