• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1992

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 73351

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 70455/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

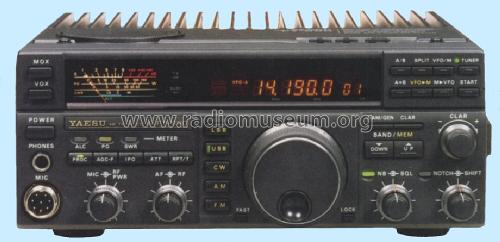

• Model: FT-890 - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 334 x 93 x 243 mm / 13.1 x 3.7 x 9.6 inch

• Notes
• Yaesu FT-890
  Frequency-Range: RX = 0,1 - 30 MHz; TX = 160 - 10 m; Modes: AM/FM/SSB/CW; P_out: 100 W (AM = 25 W). 32 Memories.
  The FT-890 AT has a build-in ATU.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Mentioned in
• FA 2/96 Geräteführer

• Literature/Schematics (2)
• beam Amateurfunk-Geräteführer '92

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
