FTDX-570

FTDX-570; Yaesu-Musen Co. Ltd. (ID = 995341) Amateur FTDX-570; Yaesu-Musen Co. Ltd. (ID = 995342) Amateur
FTDX-570; Yaesu-Musen Co. Ltd. (ID = 995343) Amateur FTDX-570; Yaesu-Musen Co. Ltd. (ID = 1059459) Amateur
FTDX-570; Yaesu-Musen Co. Ltd. (ID = 1059460) Amateur FTDX-570; Yaesu-Musen Co. Ltd. (ID = 1059461) Amateur
FTDX-570; Yaesu-Musen Co. Ltd. (ID = 1059462) Amateur FTDX-570; Yaesu-Musen Co. Ltd. (ID = 1059463) Amateur
Use red slider bar for more.
FTDX-570; Yaesu-Musen Co. Ltd. (ID = 995341) Amateur

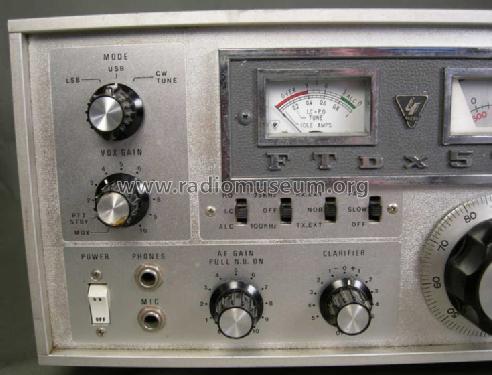

Yaesu-Musen Co. Ltd.: FTDX-570 [Amateur] ID = 995341 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FTDX-570, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1972 ?? Category: Amateur Transmitter/Receiver (and Transceiver)
Valves / Tubes 19: 6BZ6 6CB6 6BA6 6BE6 6BA6 6BZ6 6BA6 12AU7 12AU7 6BM8 6U8 7360 12AX7 6CB6 6AH6 6GK6 6KD6 6KD6 12AT7 0B2
Semiconductors (the count is only for transistors) 12:
Main principle Transceiver; ZF/IF 3180 kHz; 4 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1 W (unknown quality)
from Radiomuseum.org Model: FTDX-570 - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15 x 6.25 x 13.7 inch / 381 x 159 x 348 mm
Notes Cubre bandas de aficionados de 80, 40, 20, 15 y 10 mts, mas tres frecuencias adicionales a eleccion, recibe tambien WWV.- Potencia de entrada a etapa de salida de RF: SSB 560 wats. CW 430 wats. Modos de operacion: SSB (USB y LSB)y CW. Esencialmente es una versión de lujo del FTDX560 que posee limitador de ruidos y ventilador en la etapa de salida.
Net weight (2.2 lb = 1 kg) 40 lb (40 lb 0 oz) / 18.160 kg
Source of data - - Data from my own collection
Mentioned in - - Manufacturers Literature

Model page created by Heriberto Tavella. See "Data change" for further contributors.
