• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1980 ??

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 151381

• Number of Transistors
• 5

• Semiconductors
• 2SC372 2SC735 2SD235 SRF1427 SRF1427 µPC271 1S1007 10D-1 10D10 SG103D SR103D

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

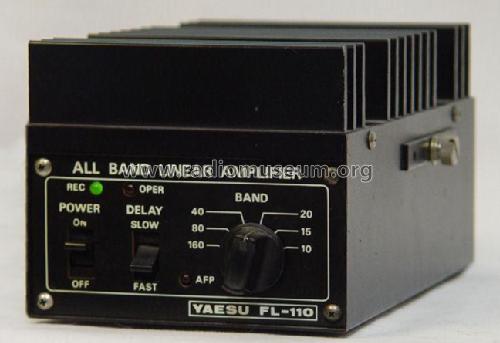

• Model: Linear-Endstufe FL-110 - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 120 x 100 x 200 mm / 4.7 x 3.9 x 7.9 inch

• Notes
• Yaesu Linear-Endstufe FL-110.
  Frequenzbereich: Amateurfunkbänder 10-160 m; Eingangsleistung: 200 W bei SSB und CW, 75 W bei FSK, 50 W bei AM; max. Steuerleistung: 15 W HF in SSB und CW, 4 W in AM und FSK. Vorzugsweise für den Mobilbetrieb gedacht, Lieferung mit Montagebügel.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Mentioned in
• RICOFUNK-Katalog 1980

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
