Logging Data Processor YC-1000L
Yaesu-Musen Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Yaesu-Musen Co. Ltd.; Tokyo
- Year
- 1980 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 322429

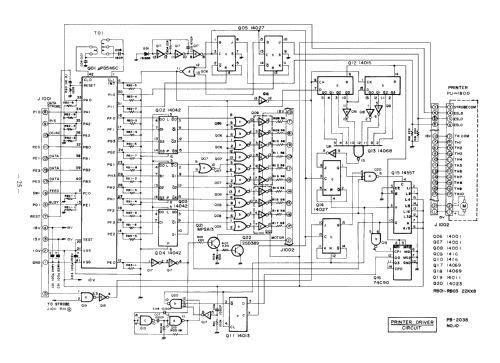

Picture from manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100; 110; 117; 200; 220; 234 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Logging Data Processor YC-1000L - Yaesu-Musen Co. Ltd.; Tokyo
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 312 x 82 x 310 mm / 12.3 x 3.2 x 12.2 inch
- Notes
-
Yaesu Musen Co., Ltd., Logging Data Processor YC-1000L
The YC-1000L is a high perfomance test instrument for engineering or service laboratories.
A precision 0.02 ppm frequency counter, digital voltmeter, and quarz clock are controlled by a 4 bit Central Processing Unit. Printout on paper tape provides convenient recording of the measurement results.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
