• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1968 ?

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 327841

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• 1S1943 1S1944

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 117; 200; 220; 234 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org

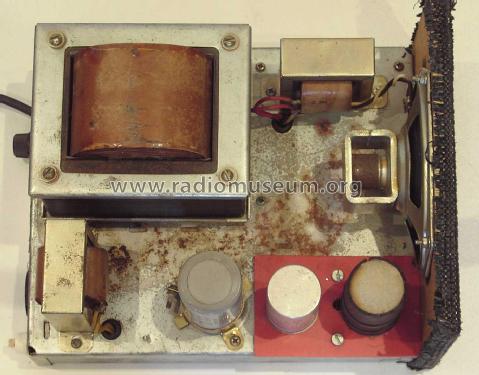

• Model: Power Supply FP-200 / FP-250 - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 8 x 5.5 x 11 inch / 203 x 140 x 279 mm

• Notes

• Power supply for the FT-200 (Yaesu) or FT-250 (Sommerkamp) transceiver. With built-in loudspeaker 8 Ω, 4 Watt.

  The various input voltages are obtained by inserting the 2 windings of the primary of the power transformer in series or in parallel.

  In Europe also sold with Sommerkamp label.

  See also Tempo  AC/one (1)

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Rollmann. See "Data change" for further contributors.
