SRG-8799

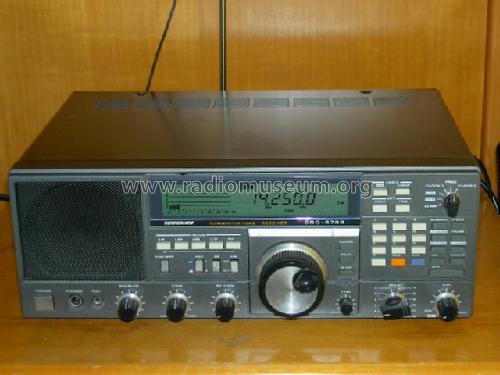

SRG-8799; Sommerkamp (ID = 879557) Amateur-R SRG-8799; Sommerkamp (ID = 107166) Amateur-R
Use red slider bar for more.
SRG-8799; Sommerkamp (ID = 879557) Amateur-R
Sommerkamp: SRG-8799 [Amateur-R] ID = 879557 933x398
Select picture or schematic to display from thumbnails on the right and click for download.
For model SRG-8799, Sommerkamp:
Sammlung Albert Weiss

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1984 ?? Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 47055/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: SRG-8799 - Sommerkamp
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 130 x 225 mm / 13.4 x 5.1 x 8.9 inch
Notes

Frequency range 150 - 29999 kHz; Modes AM, SSB, CW, FM. Optional VHF-Converter FRV-8800 (118 - 174 MHz). It's a YAESU FRG-8800 with the "Sommerkamp" label.

Net weight (2.2 lb = 1 kg) 6.1 kg / 13 lb 7 oz (13.436 lb)

Model page created by Albert Weiss. See "Data change" for further contributors.
