• Country
• Japan

• Manufacturer / Brand
• Yamada Electric Ind. Co., Ltd. (Yaecon); Tokyo

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217080

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 3x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

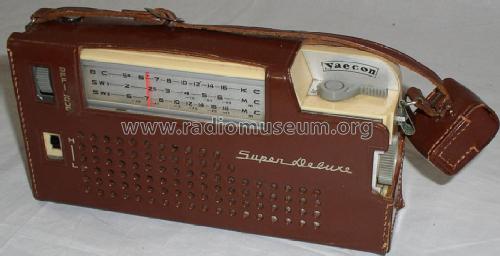

• Model: Yaecon Super Deluxe YTR-803 - Yamada Electric Ind. Co., Ltd.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 5 x 2.5 inch / 254 x 127 x 64 mm

• Notes
• External antenna input; Phono input.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
