Captain YT-981 (Japan 902)

Captain YT-981 ; Yashima Electric Ind (ID = 898330) Radio

Captain YT-981 ; Yashima Electric Ind (ID = 898345) Radio
Captain YT-981 ; Yashima Electric Ind (ID = 479336) Radio Captain YT-981 ; Yashima Electric Ind (ID = 479345) Radio
Captain YT-981 ; Yashima Electric Ind (ID = 479343) Radio Captain YT-981 ; Yashima Electric Ind (ID = 479338) Radio
Captain YT-981 ; Yashima Electric Ind (ID = 479340) Radio Captain YT-981 ; Yashima Electric Ind (ID = 479348) Radio
Captain YT-981 ; Yashima Electric Ind (ID = 688346) Radio Captain YT-981 ; Yashima Electric Ind (ID = 688351) Radio
Captain YT-981 ; Yashima Electric Ind (ID = 805790) Radio Captain YT-981 ; Yashima Electric Ind (ID = 805791) Radio
Use red slider bar for more.
Captain YT-981 ; Yashima Electric Ind (ID = 479336) Radio
Yashima Electric Ind: Captain YT-981 [Radio] ID = 479336 933x679
Select picture or schematic to display from thumbnails on the right and click for download.
For model Captain YT-981 (Japan 902), Yashima Electric Ind. Company Ltd., Osaka:
Thanks for Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Yashima Electric Ind. Company Ltd., Osaka
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA53 2SA53 2SA53 2SA53 2SB54 2SB54 2SB56 2SB56 1N60
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Captain YT-981 - Yashima Electric Ind. Company
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 136 x 82 x 36 mm / 5.4 x 3.2 x 1.4 inch
Notes

See also: KIC Electronics Remington YT-981M

Made in Japan 902

Collectors' prices

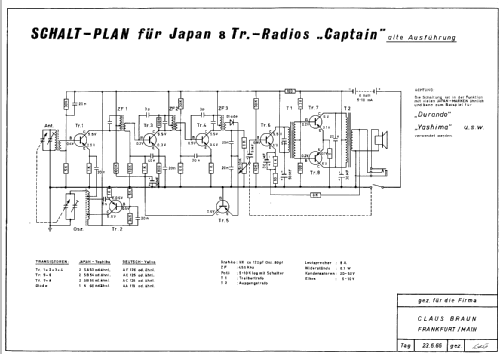

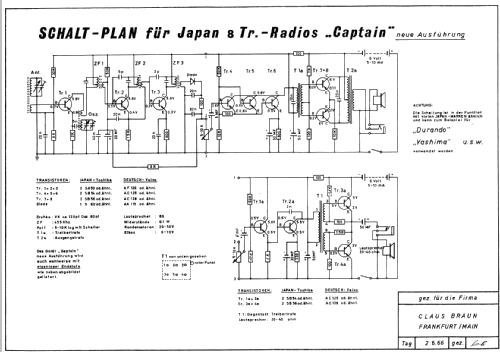

Source of data -- Schematic

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Yashima Electric Ind. Company Ltd., Osaka
Here you find 15 models, 15 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
